OIL SYSTEMS
ALU Series
Motorized oil lubrication units
Metal-reservoir oil lubrication units for centralized, intermittent lubrication. The ALU family includes compact tanks and larger reservoir sizes for different machine requirements.
- Metal reservoir with visual oil level indication
- Rotary positive displacement pump
- Single-shot lubrication for distributed oil points
- Pressure and level monitoring options
TECHNICAL OVERVIEW
Key specifications.
For the cataloged product configuration.
| Catalog models | ALU-03, ALU05, ALU08, ALU20, ALU30 |
|---|---|
| Reservoir sizes | 3, 5, 8, 20 and 30 L, model dependent |
| Lubricant | Oil |
| Operation | Intermittent |
| Motor supply | Single phase or three phase, depending on model |
Capacity, flow, motor power and dimensions vary across the ALU family. Quote the required model and electrical supply when enquiring.
View catalog reference · PDF page 13ENGINEERING RESOURCES
Drawings & documents.
Review the original documents for dimensions, configuration details and system references.
ORIGINAL TECHNICAL REFERENCE

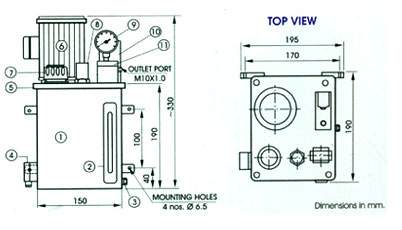

ALU-03 dimensional drawing
Confirm final dimensions and configuration with Power Luber before installation.
Open original PDFAll technical downloadsAPPLICATIONS
